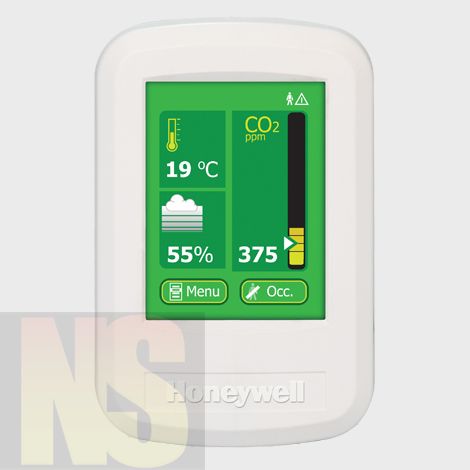

Honeywell IAQPoint2 Indoor Air Quality Monitor with Analog Output - Wall Mount

Honeywell IAQPoint2 Wall Mount Indoor Air Quality Monitor with Analog Output

Get the IAQPoint 2 Indoor Air Quality Monitor for fresh-air comfort and to cut energy costs. This devices monitors CO2 to help you combat drowsiness and an inefficient work environment for your building occupants. The IAQPoint 2 helps cut operation costs by having it in place the ventalation system runs only as needed. The IAQPoint 2  detects many gases that are common to building areas including carbon dioxide, carbon monoxide, methane, nitrogen dioxide and volatile organic compounds (VOC's). It comes with a unique, patented touchscreen to bring you leap-foward technology right to your fingertips. The benefits extend from a simple installation and commisioning to user operation. It has many features such as setting password levels and protection from tampering, configure fan activation set-points, select screen content, engineering unites and language, You are in control!

IAQPoint2 Brochure

IAQPoint 2 Datasheet

Description Model Number Order Number
Carbon dioxide (CO2) monitor, wall mount, analog IAQ-WAC 1508A1001
Carbon dioxide (CO2) monitor, wall mount, analog, relay IAQ-WAC-R 1508A1003
Carbon dioxide (CO2) monitor, wall mount, analog, temp and rH IAQ-WAC-TRH 1508A1005
Carbon dioxide (CO2) monitor, wall mount, analog, temp and rH, rela IAQ-WAC-TRH-R 1508A1007
Carbon dioxide (CO2) monitor, wall mount, analog, display IAQ-WAC-D 1508A1009
Carbon dioxide (CO2) monitor, wall mount, analog, relay, display IAQ-WAC-R-D 1508A1011
Carbon dioxide (CO2) monitor, wall mount, analog, temp and rH, display IAQ-WAC-TRH-D 1508A1013
Carbon dioxide (CO2) monitor, wall mount, analog, temp and rH, relay, display IAQ-WAC-TRH-R-D 1508A1015
VOC monitor, wall mount, analog IAQ-WAV 1508A1002
VOC monitor, wall mount, analog, relay IAQ-WAV-R 1508A1004
VOC monitor, wall mount, analog, temp and rH IAQ-WAV-TRH 1508A1006
VOC monitor, wall mount, analog, temp and rH, relay IAQ-WAV-TRH-R 1508A1008
VOC monitor, wall mount, analog, display IAQ-WAV-D 1508A1010
VOC monitor, wall mount, analog, relay, display IAQ-WAV-R-D 1508A1012
VOC monitor, wall mount, analog, temp and rH, display IAQ-WAV-TRH-D 1508A1014
VOC monitor, wall mount, analog, temp and rH, relay, display IAQ-WAV-TRH-R-D 1508A1016

Features:

User-Friendly Touchscreen Operation

  • - Menu driven, customizable, easy-to-navigate display
  • - Large 1.9 x 2.6 in VGA Screen with easy-to-read LCD digits and graphical display

Flexible, Money-Saving Design

  • - Simple wall or duct mount
  • - Multi-analog or digital (BACnet, Modbus) options
  • - DC & AC power; fits standard junction box
  • - 5 year sensor life with automatic self-calibration
  • - Adjustable set-points and optional relay for local fan activation

3-in-1 Monitoring

  • - Choose reliable CO2 or VOC sensing technologies
  • - Optimize room comfort through temperature control

Green Attributes

  • - Obtain LEED credits
  • - Meet ASHRAE 15 standards
  • - Low popwer consumption and 'sleep mode' feature
  • - Optimize HVAC use and extend life of components
