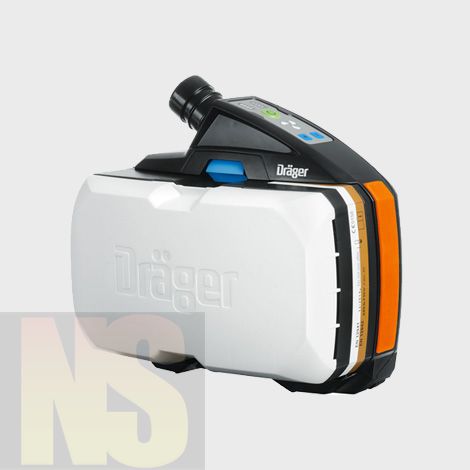

Draeger X-plore® 8700 (EX) PAPR - Power Air Purifying Respirator.
The Draeger X-plore® 8700 (EX) PAPR blower unit can operate for up to 10,000 Lifetime hours, on a single charge, depending on system configuration, the battery can operate between 16 to 20 hours. The multiple pogo pins provides a robust connection between the battery charger and the blower unit. No annual service maintenance required except changing the O-ring on the hose. Protected air intake openings ensure that sparks or water coming from the front will not be sucked into the filter. The advanced carrying system ensures optimal weight distribution. The hose connector features a 360° click adaptor. The new headpieces are designed for optimal airflow and maximum comfort to avoid eye irritation. The PAPR unit recognizes connected headgear and automatically selects the correct minimum flow rate, avoiding leakages caused by insufficient flow rates. An optical sensor prevents use without the filter and supports the right display of the saturation of the particle filter. The filter system features a plug-and-go exchange.
The system is equipped with optical, acoustic, and vibrating alarms. The entire system uses uniform color codes on all exchangeable elements and an error-proof hose connector. The Draeger X-plore 8700 PAPR was designed to be practically maintenance free, which can lead to low cost of ownership. The self-check and self-adjustment systems feature advanced temperature and pressure sensor technology to ensure the right flow rate for any environment. The simple and efficient charging system allows rapid charging (less than 3 hours for an empty battery). The unit is designed for fast and easy disassembly for cleaning and user-friendly carrying systems for standard use and decontamination applications. You can combine various components and accessories to best fit your application, and system upgrades are possible at any time.
Draeger x-plore® 8700 PAPR Technical Sheet
Draeger x-plore® 8000 PAPR Brochure
| Facepiece Type | Part Number |
| Helmet with Visor (Black or White) | Black Helmet R58325 White Helmet R59910 |
| Protective Visor | R59900 |
| Welding Hood / Visor | R59940 |
| Standard Hoods | Standard Short - Sizes: SM/Med R59800 - L/XL R59810 Standard Long - Sizes: SM/Med R59820 - L/XL R59830 |
| Premium Hoods | Premium Short - Sizes: SM/Med R59840 - L/XL R59850 Premium Long - Sizes: SM/Med R59860 - L/XL R59870 |
Available Cartridges:
| Cartridge Type | Description | Part Number |
| HE | High Effenciency HEPA | 6739540 |
| OV | Organic Vapor | 6739575 |
| Multi-Gas | CL2,HF,NH3,MA,FM,HS,SD,HC Chlorine, Hydrogen Flouride, Ammonia, Methylamine, Formaldehyde, Hydrogen Sulfide, Sulfur Dioxide and Hydrogen Chloride. |
6739590 |
| OV/HE | Organic Vapor and HEPA | 6739560 |
| OV/AG/HE | Organic Vapor, Acid Gas and HEPA | 6739565 |
| Multi-Gas /HE | CL2,HF,NH3,MA,FM,HS,SD,HC,HE Chlorine, Hydrogen Flouride, Ammonia, Methylamine, Formaldehyde, Hydrogen Sulfide, Sulfur Dioxide and Hydrogen Chloride. |
6739570 |
Available Additional Filters -
| Pre-Filters | Description | Part Number |
| Pre-Filter | Prefilter for Cartridge, Catches large particles and/or May aid in extending the life of the cartridge 10/pkg | 6739730 |
| Odor Filter | Prefilter for Cartridge, May aid in removing nuisance odors. 5/kg * Requires larger blower cover. | 6739605 |
| Odor Filter Kit | Prefilter for Cartridge, May aid in removing nuisance odors. 1 each Odor Filter with 1 each Larger blower cover. | 6739735 |
