Guardian® CB-12 Anchor Point

$225.49
SKU
Guardian CB12 Anchor Point

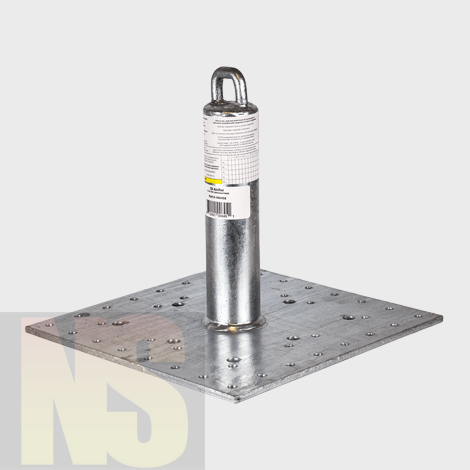

Guardian® CB-12 Anchor Point

The Guardian CB-12 Anchor Point is intended for permanent applications. CB-12 Anchors are compatible for installation onto wood, steel, and concrete substrates (fasteners are included for wood and steel applications). The anchor post functions to extend through roofing so that it is accessible both during and after roof construction, and is compatible for use with SRLs, vertical lifelines, horizontal lifelines, and shock absorbing lanyards. CB-12 Anchors are composed of durable, galvanized steel, and are an excellent choice for nearly any fall protection application. Available with a premium swivel top, pass through top, or no swivel top.

Guardian CB-12 Anchor Point Tech Sheet

Specifications

Material Galvanized Steel
Capacity 420 lbs.
Minimum Breaking Strength 5000 lbs.
Weight 35 lbs. (No Swivel)
35 lbs. (Premium Swivel)
37.5 lbs. (Pass-Thru)
Applicable Standards  ANSI Z359.18-17*, ANSI A10.32-12, OSHA 1926 Subpart M, OSHA 1910
Part Number 00645 (No Swivel)
00648 (Pass-Thru)

 *See Instructions
