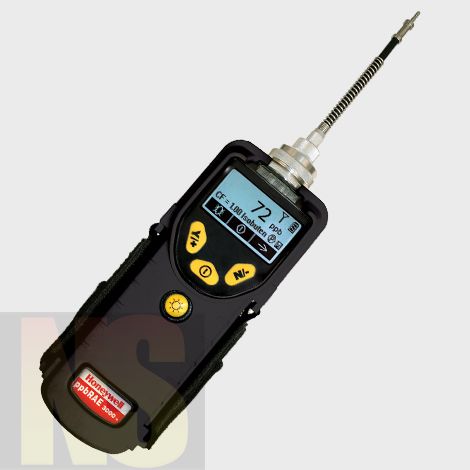

RAE Systems - ppbRAE 3000 Hand-held ppb VOC Monitor (1ppb -10,000ppm).
The ppbRAE 3000 is the most advanced handheld volatile organic compound (VOC) on the market. Its Photoionization Detector’s (PID) extended range of 1 ppb to 10,000 ppm makes it an ideal instrument for applications from HazMat/Homeland Security, industrial hygiene, to Indoor Air Quality and military applications.
The RF modem allows real-time data transmissions with a base controller located up to 500 feet (or two-miles with optional RAELink2 portable modem) or (RAELink3 is Bluetooth Wireless)away from the ppbRAE 3000 detector. A personal computer can be used as the base station for a ppbRAE 3000 system. The standard ProRAE Remote software is capable of monitoring the input of up to 64 remotelylocated monitors like ppbRAE 3000, or AreaRAE, etc.
*Hazmat Shipping fee is included on Calibration Kits. Standard Shipping rates will apply.
Monitor Only Includes- -ppbRAE 3000 Monitor -Datalogging with ProRAE Studio Software -Travel Download Charger -RAE UV Lamp (as specified) -Flex-I-Probe -External Filter -Black Rubber Boot -Alkaline Battery Adapter -Lamp Cleaning Tool Kit -Resources CDROM and maintenance manual -Soft Leather Case -VOC Zeroing Tube (1box), Tube Adapter, Tedlat Bag -*Lithium-Ion Rechargeable Battery, Universal AC/DC adapter and universal plug kit -*Wireless Bluetooth Communication (to use with RAELink 3,ProRAE Remote)
* If specified on configuration.
ppbRAE 3000 Accessory Kit Options:
Accessory Kit includes - Hard transport case with precut foam, Charging / Download cradle ( instead of travel charger ), 5 porous metal filters and O-Rings, Gas outlet port adapter and tubing.
Accessory & Calibration Kit includes - 10 ppm Isobutylene Calibration gas in a 103 Liter Bottle, Male Regulator & Flow Controller, Hard transport case with precut foam, Charging / Download cradle ( instead of travel charger ), 5 porous metal filters and O-Rings, Gas outlet port adapter and tubing.
Proven PID technology The patented sensor provides the following unique features: - a 3-second response time - extended range up to 10,000 ppm with improved linearity - humidity compensation with inbuilt humidity and Temperature sensors
•
Real-time wireless data transmission with built-in RF modem or Bluetooth.
•
Design for service Easy access to lamp and sensor in seconds without tools.
•
Big Graphic display for easy overview of gas type, Correction Factor and concentration.
•
Field interchangeable battery pack in second’s without tools.
•
Integrated Flash Light for better view in dark conditions
•
User friendly screens including plot view chart view
•
Inbuilt full RAE Systems 350 compounds correction factors list measure more chemicals than any other PID
•
Multilanguage support with 10 languages encoded
•
Rugged housing withstands use in harsh environments - IP67 Waterproof design for easy cleaning and decontamination in water - Strong protective removable Rubber Boot.
Additional Advantages:
•
View real-time sensor data and alarm status at headquarters or command Center
•
Automatic lamp type recognition
•
Duty-cycling™ lamp and sensor autocleaning technology
•
Tough, flexible inlet Flexi-Probe™
•
Large 3 keys operable with 3 layers of gloves
•
Strong, built-in sample pump draws up to 100 feet (30m) horizontally or vertically
•
Loud 95 dB audible alarm
•
Bright red flashing visual alarm
•
Interchangeable Drop-In Lithium-ion and alkaline battery packs
•
Charging cradle doubles as an external battery charger
•
Compatible with AutoRAE™ calibration station
•
ProRAE Remote software simultaneously controls and displays readings for up to 64 remote detectors
•
License free, ISM band RF transmission with communication range up to 500 feet 2 miles (with optional)
•
Optional RAELink III modem provides GPS capability to track and display readings from remote detectors as well as 2 miles long distance transmission
•
Data logging with up to 6 months of data at one-minute intervals
