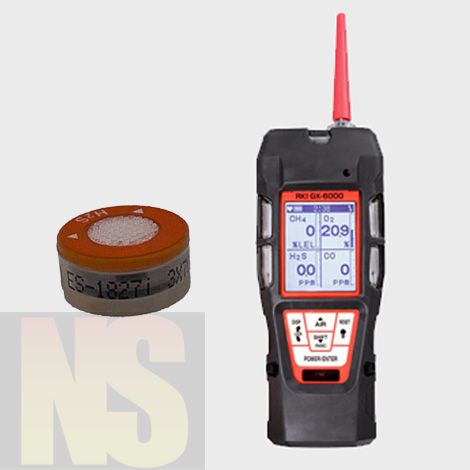

RKI Replacement H2S Sensor ES-1827i for GX-6000
$140.00
SKU
GX-6000 ES-1827i
RKI Replacement H2S 0-100ppm Sensor ES-1827i for GX-6000 -
| Part Number | Description |
| ES-1827i | Hydrogen Sulfide 0-100ppm Replacement Sensor |
|
Gases & Detectable Ranges |
|||||
| Gas | Measuring Range | Reading Increment | Alarm Set Points | Accuracy (which ever is greater) | |
| PID Sensors | |||||
| 10.6 Lamp | 600 VOC’s | 0 – 40,000 ppb | 1 ppb: (< 5000 ppb) 10 ppb: (> 5,000 ppb) | A1: 5,000 ppb | ± 10% of reading, ± 1 digit |
| A2: 10,000 ppb | |||||
| 0 – 4,000 ppm | 0.1 ppm: (< 600 ppm) 1 ppm: (> 600 ppm) | A1: 400 ppm | |||
| A2: 1,000 ppm | |||||
| 10.0 Lamp | Benzene Specific | 0.01 – 50 ppm | 0.01 ppm (0 ~ 10 ppm) 0.1 ppm (10 ~ 50 ppm) | No Alarms | |
| 300 VOC’s | 0 – 100 ppm | 0.01 ppm (0 ~ 10 ppm) 0.1 ppm (10 ~ 100 ppm) | A1: 5 ppm A2: 10 ppm | ||
| 11.7 Lamp | High Voltage Lamp | 0 – 100 ppm | 0.1 ppm | A1: 5 ppm | |
| A2: 10 ppm | |||||
| Galvanic | |||||
| Oxygen (O2) | 0 – 40.0% Vol. | 0.1% Vol. | A1: 19.5 Vol. | ± 0.5% O2 | |
| A2: 23.5 Vol. | |||||
| Electro Chemical | |||||
| Carbon Monoxide (CO) | 0 – 500 ppm | 1 ppm | A1: 25 ppm | ± 5% of reading or ± 5 ppm | |
| A2: 50 ppm | |||||
| TWA 25 ppm | |||||
| STEL 200 ppm | |||||
| Hydrogen Sulfide (H2S) | 0 – 100.0 ppm | 0.5 ppm | A1: 5.0 ppm | ± 5% of reading or ± 2 ppm | |
| A2: 30.0 ppm | |||||
| TWA 1.0 ppm | |||||
| STEL 5.0 ppm | |||||
| Toxics (EC Sensors) | |||||
| Ammonia (NH3) | 0 – 400.0 ppm | 0.5 ppm | A1: 25 ppm | ± 10% of reading or ± 5% of full scale | |
| A2: 50 ppm | |||||
| Chlorine (Cl2) | 0 – 10.00 ppm | 0.05 ppm | A1: 0.5 ppm | ||
| A2: 1.0 ppm | |||||
| Hydrogen Cyanide (HCN) | 0 – 15.0 ppm | 0.1 ppm | A1: 5 ppm | ||
| A2: 10 ppm | |||||
| Nitrogen Dioxide (NO2) | 0 – 20.00 ppm | 0.05 ppm | A1: 3 ppm | ||
| A2: 6 ppm | |||||
| Phosphine | 0 – 20.00 ppm | 0.01 ppm | A1: 0.30 ppm | ||
| A2: 1.00 ppm | |||||
| Sulfur Dioxide (SO2) | 0 – 99.90 ppm | 0.05 ppm | A1: 2 ppm | ||
| A2: 5 ppm | |||||
| IR Sensors | |||||
| Carbon Dioxide (CO2) | 0 – 10,000 ppm | 20 ppm | A1: 5,000 ppm | ± 5% of reading or ± 2% of full scale | |
| TWA 5,000 ppm | |||||
| 0 – 10.00% Vol. | 0.02% | A1: 0.50% Vol | |||
| A2: 3.00% Vol | |||||
| STEL 3.00% Vol | |||||
| TWA 0.50% Vol | |||||
| Methane (CH4) | 0 – 100% LEL 0 – 100% Vol. | 1% LEL/ 0.5% Vol | A1: 10% LEL A2: 50% LEL | ||
| Hydrocarbons | 0 – 100% LEL 0 – 30% Vol. | ||||
| Catalytic | |||||
| Hydrocarbons (CH4, std) | 0 – 100% LEL | 1% LEL | A1: 10%LEL | ± 5% of reading or ± 2% LEL | |
| A2: 50%LEL | |||||
|
Common Specifications |
|||
| Alarm Types | Gas alarm | Man-down | Trouble |
| Low and high adjustable | 1st – self reset 2nd – latching | Low flow Sensor connection Low battery Circuit error Calibration range | |
| Sample Method | Sample draw pump, flow rate 0.45 LPM, 50 foot sample range | ||
| Display | Digital LCD, autobacklight, peak bar display, auto display rotation, and customize order of gases | ||
| Audible Alarm | 95 dB at 1 ft. | ||
| Languages | English, Spanish, French, German, Italian, Japanese, Korean, Portuguese, Russian | ||
| Continuous Operation | 14 hours on Lithium-ion battery pack. Complete recharge in 3 hours. 8 hours Alkaline battery pack (3 AA size within each pack) | ||
| Operating Temp. & Humidity | -4°F to 122°F (-20°C ~ +50℃), 0- 95% RH non condensing | ||
| Dimensions | 2.6” W x 7.8” H x 2” D (H200 x W68 x D52 mm) 14 ounce (400g) (with lithium battery pack) | ||
| Case Material | Dust and water resistant with IP-67 approval (exclude sample hose and probe) | ||
| Safety Design / Approvals | Explosion proof: IECEx , ATEX , TIIS , cCSAus Explosion class :Ex ia IIC T4 Ga Others: CE Marking | ||
| Standard Features | 2 Smart sensors slots auto recognize sensor changes Library of over 600 VOC’s User defined VOC list. Up to 30 frequently used Recent VOC list for last 8 selected gases Pump and circuit status indicators User & station ID selection menu Datalogging (interval, alarm trend, station and user ID) Snap logging – on demand data logging Demand zero / Auto zero BUMP and CAL expiration alarm Flashlight IrDA communication LEL sensor protection mode | ||
| Standard Accessories | • Rubber boot • Belt clip • Hand strap • Tapper nozzle• Probe with hydrophobic & dust filter 3’ teflon lined hose • Benzene pre-filter tubes and holder (benzene versions) | ||
| Optional Accessories | • SDM-6000 calibration station • Bundles with instrument carrying case and accessories • Flexible probes • Up to 50 foot sample hoses • Filter set • IrDA cable | ||
| Warranty | Two years material (including sensors) and workmanship. One year for Cl2 and PID sensor (Two months for 11.7 eV lamp) | ||
