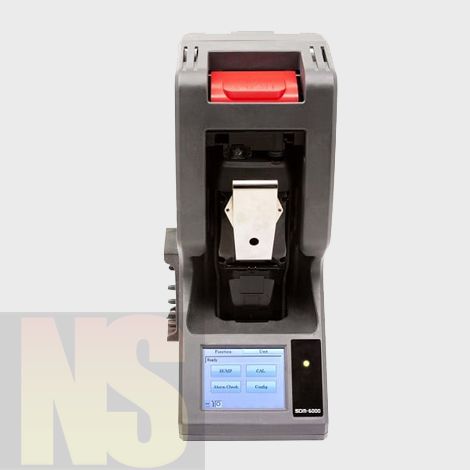

RKI SDM-6000 Calibration Station for GX-6000
RKI SDM-6000 Calibration Station for GX-6000 -
The SDM-6000 is a versatile maintenance tool that automates the service of a GX-6000 portable gas monitor. This docking station can be used as a stand alone device for charging, calibration and bump testing, with all records stored automatically for future upload to a PC via SD card (PC software and SD card included).
Modular Design SDM-6000 calibration stations are modular by design and can easily connect to each other without the need of any tubes or cables. One power source and one set of calibration equipment can provide service for up to 10 SDM-6000 calibration stations.
Up to 10 calibration stations can also be connected to one PC for automated charging, calibration, bump testing and archiving of data. Even if instruments are turned off, automated routines will power up the instruments and run as scheduled. All data collected from the PC Controlled software can also be centralized in one network location accessible by anyone with the PC Controlled software with access to the network location.
| SPECIFICATIONS | |
| Display | Touch panel TFT liquid crystal (3.5 inch, 320×240 image element QVGA, RGB1677 million colors) Back light |
| LED | 3 color [Green, Red, Orange]. Each status is indicated by Lighting / Blinking |
| BUMP test | Standard setting values
AIR Flush time: 15sec, GAS time: 20sec, AIR Purge time: 5sec Threshold value: ±50%, Auto Calibration: OFF, Auto alarm function check: ON Auto print: OFF Setting range AIR Flush time: 15~120sec GAS time: 20~120sec AIR Purge time: 5~120sec Threshold value: ±10~50% Auto calibration: ON, OFF Auto alarm function check: ON, OFF Auto print: ON, OFF Bump test result: Displayed on TFT liquid crystal |
| Calibration | Standard setting values
AIR Flush time: 30sec, GAS time: 90sec, AIR Purge time: 30sec Auto alarm function check: ON, Auto print: OFF Setting ranges AIR Flush time: 15~120sec GAS time: 20~120sec AIR Purge time: 5~120sec Auto alarm function check: ON, OFF Auto print: ON, OFF Calibration result: Displayed on touch screen display |
| Power (AC adaptor) | 100~240VAC~50/60Hz |
| Dimension, weight | 5.11”(W) x 13’(H) x 7.2”(D)in Approx. 3.7lb |
| Operation temperature, humidity | 0~104F, below 95~RH (no condensing) |
| USB printer port | A type: Connects SDM-6000 printer (SII, DPU-S245) via USB cable |
| RJ-45 connector | Ethernet port for a LAN connection |
| SD card slot | Compatible with SD & SDHC cards |
| Joint connector | Connecting SDM-6000 (Max 10 units) and SV-3 |
| Inlet | 4 inlets: GAS 1 / GAS 2 / GAS 3 / AIR |
| Certification | CE marking |
| Standard Functions | Charging, Cal. cap fitting status monitoring, Power ON function, Alarm activation check, multi language (English, German, Japanese, Korean, Russian, Portuguese, Spanish, Italian, French), backlight adjusting, buzzer function, self-diagnosis for instruments connection |
| Standard accessory | Operating manual, filter, connecting plate, wall mount plate, PC controller software |
| Software | PC controller software included as standard. Windows 7 & 10 compatible |
| Optional accessory | SV-3 solenoid valve adds 3 additional calibration gas inputs
AC adaptor (15W output), AC adaptor (100W output) Calibration Station utility software Calibration gas & regulators Tubing Battery powered printer |
Specifications subject to change without notice.
Features
- Stand-alone station (no PC Required)
- Charge, calibrate, bump test, and alarm test
- Included software collects calibration, bump test, alarm history, and exposure date from instruments
- Automatically power instruments on / off for scheduled calibration
- Accepts GX-6000 with or without rubber boot
Module Design
- Simultaneously bump / calibrate, charge, and collect data up to 10 instruments
- No tubing, adaptors or wires needed to connect
- One power source for all stations
- Configure GX-6000 parameters
- Centralize instrument data from multiple stations and locations to one network location
- Ethernet port for LAN connectivity
- Schedule automatic calibration / bump test
- Optional valve expansion module for up to six gas cylinders
- Optional battery operated printer
