SensorRAE 4R+


SensorRAE 4R+

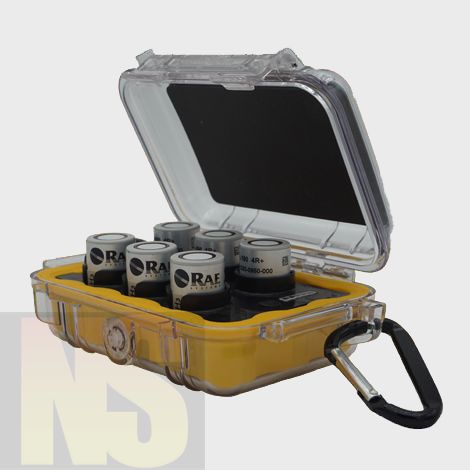

The SensorRAE 4R+ is a six-socket electrochemical (EC) sensor conditioning station that not only exmpands the assortment of 4R+ sensors available to the users of RAE Systems gas detection instruments in the field. The SensorRAE 4R+ keeps your sensors warmed up and stored on a bias if necessary and ready for depolyment. It is rugged, pocket-sized and wter proof, it is the convenient way to condition, store and transport sensors.

SensorRAE 4R+ Datasheet

Supports the Following  RAE Systems Products :

  • - MultiRAE LIte
  • - MultiRAE
  • - MultiRAE Pro
  • - MultiRAE Benzene
  • - ToxiRAE Pro
  • - AreaRAE Plus
  • - AreaRAE Pro
Dimensions 5.4" H x 4.0" W x 2.1" D (137 x 102 x 53 mm)
Weight 10oz (0.6 lbs) with batteries, without sensors installed
Housing Rugged Pelican Case
IP Rating IP-67 (dust-tight and waterproof against temporary immersion)
Status Indication

LED lights indicate readiness status of each sensor and battery levels.

LEDs activate when the Test button is pressed

Batteries 4 standard AAA batteries
Battery Runtime 6 months


  • - Contractor Services
  • - HazMat Response
  • - RAE Systems-Authorized Distributors' Equipment Rental Shops
  • - Military (CBRM Detection EOD)


  • - Holds up to six 4R+ sensors at a time
  • - Delivers six months of uninterrupted runtime on four standard AAA batteries
  • - Simple to use: just plug in the sensors
  • - Clearly communicated sensor rediness statusand battery levels with LED lights
